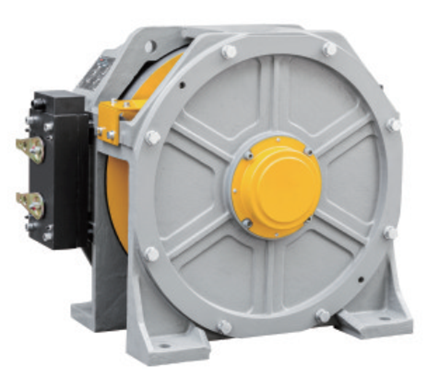

You are here: Home » Products » Traction system » Gearless Traction Machine » ESN02-GTW10
| Voltage | 380VAC/220VAC |
| Max Static Load | 5500KG |
| Suspection | 2:1 |
| Control Method | VVVF |
| Brake | DC110V, 2X2A |
| Weight | 550kg |
| Load(kg) | Lift speed m/s | Height | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade |
|---|---|---|---|---|---|---|
| 630 | 1 | ≤80 | Φ400 | 4xΦ10x16 | 4.3 | IP41 |
| 630 | 1.5 | ≤80 | Φ325 | 4xΦ10x16 | 6.3 | IP41 |
| 630 | 1.6 | ≤80 | Φ325 | 4xΦ10x16 | 6.7 | IP41 |
| 630 | 1.75 | ≤80 | Φ325 | 4xΦ10x16 | 7.3 | IP41 |
| 630 | 2 | ≤80 | Φ325 | 4xΦ10x16 | 8.4 | IP41 |
| 800 | 1 | ≤80 | Φ325 | 5xΦ10x16 | 5.3 | IP41 |
| 800 | 1.5 | ≤80 | Φ325 | 5xΦ10x16 | 8 | IP41 |
| 800 | 1.6 | ≤80 | Φ325 | 5xΦ10x16 | 8.5 | IP41 |
| 800 | 1.75 | ≤80 | Φ325 | 5xΦ10x16 | 9.3 | IP41 |
| 800 | 2 | ≤80 | Φ325 | 5xΦ10x16 | 10.7 | IP41 |
| 1000 | 1 | ≤80 | Φ325 | 5xΦ10x16 | 6.5 | IP41 |
| 1000 | 1.5 | ≤80 | Φ325 | 5xΦ10x16 | 9.8 | IP41 |
| 1000 | 1.6 | ≤80 | Φ325 | 5xΦ10x16 | 10.4 | IP41 |
| 1000 | 1.75 | ≤80 | Φ325 | 5xΦ10x16 | 11.4 | IP41 |
| 1000 | 2 | ≤80 | Φ325 | 5xΦ10x16 | 13.1 | IP41 |
| 1150 | 1 | ≤80 | Φ325 | 8xΦ8x12 | 7.6 | IP41 |
| 1150 | 1.5 | ≤80 | Φ325 | 8xΦ8x12 | 11.4 | IP41 |
| 1150 | 1.6 | ≤80 | Φ325 | 8xΦ8x12 | 12.3 | IP41 |
| 1150 | 1.75 | ≤80 | Φ325 | 8xΦ8x12 | 13.5 | IP41 |
| 1150 | 2 | ≤80 | Φ325 | 8xΦ8x12 | 13.5 | IP41 |
