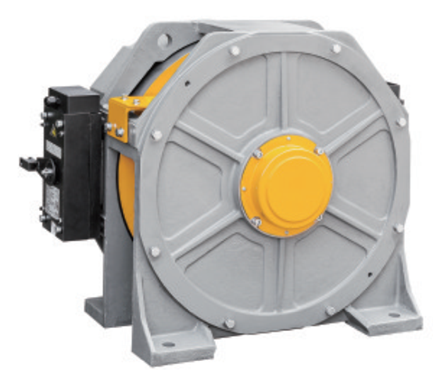

You are here: Home » Products » Traction system » Gearless Traction Machine » ESN02-GTW10M
| Voltage | 380VAC/220VAC |
| Max Static Load | 3500KG |
| Suspection | 2:1 |
| Control Method | VVVF |
| Brake | DC110V, 2X1.22A |
| Weight | 450kg |
| Load(kg) | Lift speed m/s | Height | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade |
|---|---|---|---|---|---|---|
| 1000 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 6.2 | IP41 |
| 1000 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 9.3 | IP41 |
| 1000 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 9.9 | IP41 |
| 1000 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 10.8 | IP41 |
| 1000 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 12.4 | IP41 |
| 1000 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 15.5 | IP41 |
| 1150 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 7.1 | IP41 |
| 1150 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 10.6 | IP41 |
| 1150 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 11.3 | IP41 |
| 1150 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 12.4 | IP41 |
| 1150 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 14.2 | IP41 |
| 1150 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 17.7 | IP41 |
| 1250 | 1 | ≤120 | Φ485 | 6xΦ10x16 | 8.2 | IP41 |
| 1250 | 1.5 | ≤120 | Φ485 | 6xΦ10x16 | 12.2 | IP41 |
| 1250 | 1.6 | ≤120 | Φ485 | 6xΦ10x16 | 13.1 | IP41 |
| 1250 | 1.75 | ≤120 | Φ485 | 6xΦ10x16 | 14.3 | IP41 |
| 1250 | 2 | ≤120 | Φ485 | 6xΦ10x16 | 16.4 | IP41 |
| 1250 | 2.5 | ≤120 | Φ485 | 6xΦ10x16 | 20.4 | IP41 |
