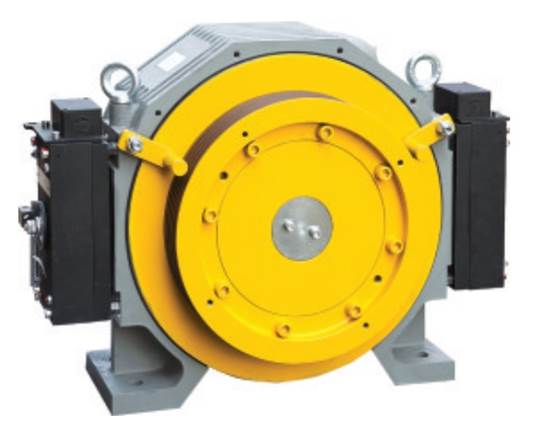

You are here: Home » Products » Traction system » Gearless Traction Machine » ESN02-GTW7A
| Voltage | 380VAC/220VAC |
| Max Static Load | 2000KG |
| Suspection | 2:1 |
| Control Method | VVVF |
| Brake | DC110V, 2X0.8A(2X1.1A) |
| Weight | 200kg |
| Load(kg) | Lift speed m/s | Height | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | IP Grade |
|---|---|---|---|---|---|---|
| 320 | 1 | ≤80 | Φ325 | 3xΦ8x12 | 2.5 | IP41 |
| 320 | 1.5 | ≤80 | Φ325 | 3xΦ8x12 | 3.7 | IP41 |
| 320 | 1.6 | ≤80 | Φ325 | 3xΦ8x12 | 4 | IP41 |
| 320 | 1.75 | ≤80 | Φ325 | 3xΦ8x12 | 4.3 | IP41 |
| 450 | 1 | ≤80 | Φ325 | 3xΦ8x12 | 3.3 | IP41 |
| 450 | 1.5 | ≤80 | Φ325 | 4xΦ8x12 | 4.9 | IP41 |
| 450 | 1.6 | ≤80 | Φ325 | 4xΦ8x12 | 5.2 | IP41 |
| 450 | 1.75 | ≤80 | Φ325 | 4xΦ8x12 | 5.7 | IP41 |
| 550 | 0.63 | ≤80 | Φ325 | 4xΦ8x12 | 2.2 | IP41 |
| 550 | 0.75 | ≤80 | Φ325 | 5xΦ8x12 | 2.7 | IP41 |
| 550 | 1 | ≤80 | Φ325 | 5xΦ8x12 | 3.6 | IP41 |
| 550 | 1.5 | ≤80 | Φ325 | 5xΦ8x12 | 5.4 | IP41 |
| 550 | 1.6 | ≤80 | Φ325 | 5xΦ8x12 | 5.7 | IP41 |
| 550 | 1.75 | ≤80 | Φ325 | 5xΦ8x12 | 6.3 | IP41 |
| 630 | 0.63 | ≤80 | Φ325 | 5xΦ8x12 | 2.5 | IP41 |
| 630 | 0.75 | ≤80 | Φ325 | 5xΦ8x12 | 3 | IP41 |
| 630 | 1 | ≤80 | Φ325 | 5xΦ8x12 | 4 | IP41 |
| 630 | 1.5 | ≤80 | Φ325 | 5xΦ8x12 | 6 | IP41 |
| 630 | 1.6 | ≤80 | Φ325 | 5xΦ8x12 | 6.4 | IP41 |
| 630 | 1.75 | ≤80 | Φ325 | 5xΦ8x12 | 7 | IP41 |
