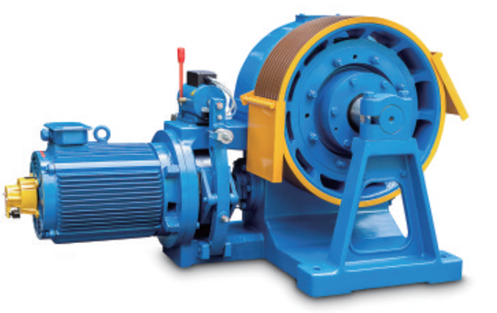

You are here: Home » Products » Traction system » Geared Traction machine » ESN01-YJ320A
| Max Static Load | 12500kg |
| Suspection | 1:1 |
| Control Method | VVVF |
| Brake | DC110V, 2.2A AC220V, 4.4A/2.2A |
| Weight | 1450kg |
| As shown is right sheave type, left sheave type is optional . | |
| Load(kg) | Lift speed m/s | Radio | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | Pole |
|---|---|---|---|---|---|---|
| 2000 | 0.5 | 69:2 | Φ700 | 8xΦ16x25 | 11 | 6 |
| 2000 | 1 | 69:2 | Φ700 | 8xΦ16x25 | 18.5 | 6 |
| 2000 | 1.5 | 69:2 | Φ700 | 8xΦ16x25 | 26 | 4 |
| 2000 | 1.75 | 61:2 | Φ700 | 8xΦ16x25 | 30 | 4 |
| 2000 | 2 | 82:3 | Φ700 | 8xΦ16x25 | 37 | 4 |
| 2500 | 0.5 | 69:1 | Φ700 | 8xΦ16x25 | 15 | 6 |
| 2500 | 1 | 69:2 | Φ700 | 8xΦ16x25 | 22 | 6 |
| 2500 | 1.5 | 69:2 | Φ700 | 8xΦ16x25 | 30 | 4 |
| 2500 | 1.75 | 61:2 | Φ700 | 8xΦ16x25 | 37 | 4 |
| 2500 | 2 | 82:3 | Φ700 | 8xΦ16x25 | 45 | 4 |
