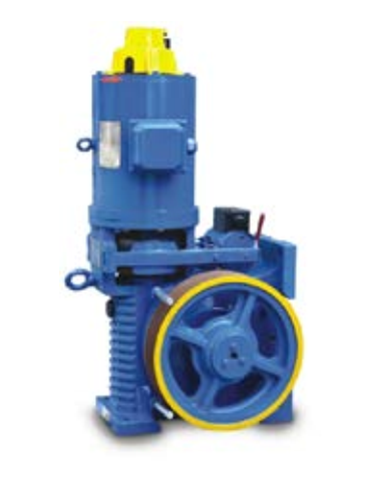

You are here: Home » Products » Traction system » Geared Traction machine » ESN01-YJ140
| Max Static Load | 2800kg |
| Suspection | 1:1 |
| Control Method | VVVF |
| Brake | DC110V, 1.4A AC220V,1.2A/0.6A |
| Weight | 285kg |
| Horizontal type is optional. | |
| Load(kg) | Lift speed m/s | Radio | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (KW) | Pole |
|---|---|---|---|---|---|---|
| 400 | 0.5 | 51:1 | Φ340 | 5xΦ8x12 | 3.5 | 4 |
| 400 | 0.63 | 51:2 | Φ425 | 4xΦ10x16 | 3.5 | 4 |
| 400 | 01 | 51:1 | Φ340 | 5xΦ8x12 | 4.5 | 4 |
| 500 | 0.5 | 51:2 | Φ340 | 6xΦ8x12 | 3.5 | 4 |
| 500 | 0.63 | 51:1 | Φ425 | 4xΦ10x16 | 4.5 | 4 |
| 500 | 1 | 51:2 | Φ340 | 6xΦ8x12 | 5.5 | 4 |
| 500 | 1.5 | 41:2 | Φ425 | 4xΦ10x16 | 7.5 | 4 |
