ESN01-YJ275A

Max Static Load	9000kg
Suspection	1:1
Control Method	VVVF
Brake	DC110V, 2A
Weight	910kg

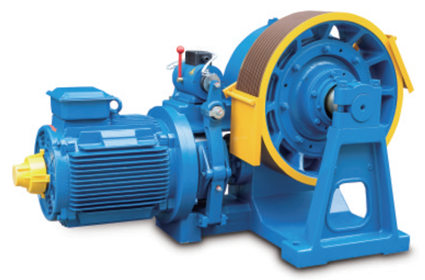

As shown is right sheave type, left sheave is optional

Load(kg)	Lift speed m/s	Radio	Sheave Diam (mm)	Rope Sheave (mm)	Motor Power (KW)	Pole
1150	0.5	59:1	Φ650	6xΦ13x20	7.5	6
1150	1	59:2	Φ650	6xΦ13x20	11	6
1150	1.25	49:2	Φ650	6xΦ13x20	15	6
1150	1.6	59:2	Φ650	8xΦ13x20	18.5	4
1150	1.75	57:1	Φ650	8xΦ13x20	18.5	4
1150	2	49:2	Φ650	8xΦ13x20	22	4
1250	0.5	59:1	Φ650	6xΦ13x20	7.5	6
1250	1	59:2	Φ650	6xΦ13x20	15	6
1250	1.6	59:2	Φ650	8xΦ13x20	22	4
1250	1.75	57:2	Φ650	8xΦ13x20	22	4
1250	2	49:2	Φ650	8xΦ13x20	26	4
1350	0.5	59:1	Φ650	6xΦ13x20	7.5	6
1350	1	59:2	Φ650	5xΦ13x20	15	6
1350	1.6	59:2	Φ650	8xΦ13x20	22	4
1350	1.75	57:2	Φ650	8xΦ13x20	22	4
1350	2	49:2	Φ650	8xΦ13x20	26	4
1600	0.5	59:1	Φ650	8xΦ13x20	11	6
1600	1	59:2	Φ650	8xΦ13x20	18.5	6
1600	1.6	59:2	Φ650	8xΦ13x20	26	4
1600	1.75	57:2	Φ650	8xΦ13x20	26	4
1600	2	49:2	Φ650	8xΦ13x20	30	4
