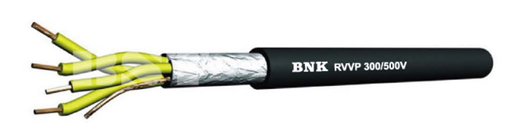

ESNB02-04 RVV RVVP Elevator Round PVC Control Cable

Type	Conductor Section(mm²)	Conductor Construction(mm²)	Product Dia.(mm)	70℃Insulated Resister(MΩ·KM)	20℃Conductor DC Resister(Ω/KM)
RVV	6X0.75	30/0.18	9.6	≥0.011	≤26.0
RVV	7X0.75	30/0.18	89.6	≥0.011	≤26.0
RVV	8X0.75	30/0.18	10.6	≥0.011	≤26.0
RVV	12X0.75	30/0.18	13.2	≥0.011/0.010	≤26.0
RVV	16X0.75	30/0.18	14.0	≥0.011	≤26.0
RVV	6X1.0	40/0.18	11.0	≥0.011	≤26.0
RVV	7X1.0	40/0.18	11.0	≥0.011	≤26.0
RVV	8X1.0	40/0.18	13.2	≥0.011	≤26.0
RVV	12X1.0	32/0.2	14.8	≥0.011	≤26.0
RVV	16X1.0	32/0.2	15.3	≥0.011	≤26.0
RVV	5X0.75+1X2.0	30/0.18+37/0.26	7.7	≥0.011/0.010	≤26.0/9.79
RVV	6X0.75+1X2.0	30/0.18+37/0.26	10.0	≥0.011/0.010	≤26.0/9.79
RVV	7X0.75+1X2.0	30/0.18+37/0.26	11.5	≥0.010/0.010	≤26.0/9.79
RVV	11X0.75+1X2.0	30/0.18+37/0.26	14.2	≥0.011/0.010	≤26.0/9.79
RVV	12X0.75+1X2.0	30/0.18+37/0.26	14.5	≥0.011/0.010	≤26.0/9.79
RVV	18X0.75+1X2.0	30/0.18+37/0.26	15.5	≥0.011/0.010	≤26.0/9.79
RVV	19X0.75+1X2.0	30/0.18+37/0.26	16.0	≥0.011/0.010	≤26.0/9.79
RVV	24X0.75+1X2.0	30/0.18+37/0.26	18.8	≥0.011/0.010	≤26.0/9.79
RVV	29X0.75+1X2.0	30/0.18+37/0.26	19.5	≥0.011/0.010	≤26.0/9.79
RVVP	2X0.5	20/0.18	6.2	≥0.013	≤69.2
RVVP	2X1	40/0.18	8.2	≥0.010	≤19.5
RVVP	3X0.75	30/0.18	7.4	≥0.010	≤26.0
RVVP	3X1	30/0.2	9.1	≥0.010	≤19.5
RVVP	4X0.2	12/0.15	6.2	≥0.013	≤92.3
RVVP	4X0.3	16/0.15	7.0	≥0.014	≤69.2
