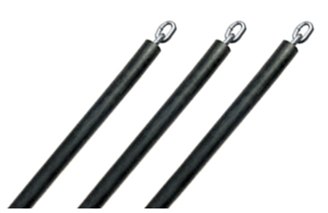

ESNB03-02 Full plastic compensation chain

Model	Weight(kg/m)	External diameter(mm)	Broken load(≥KN)	Min bending diameter(mm)
ESN-FP-075	1.12±0.2	24±1.5	11.25	610
ESN-FP-100	1.49±0.2	29±1.5	13.32	610
ESN-FP-120	1.88±0.2	31±1.5	18.00	610
ESN-FP-130	2.0±0.2	33±1.5	18.20	610
ESN-FP-150	2.24±0.2	35±1.5	23.66	610
ESN-FP-200	2.98±0.2	38±1.5	29.97	660
ESN-FP-250	3.73±0.2	42±1.5	40.32	660
ESN-FP-300	4.47±0.2	45±1.5	46.58	660
ESN-FP-350	5.20±0.2	49±1.5	53.40	660
ESN-FP-400	5.96±0.2	52±1.5	62.60	660
