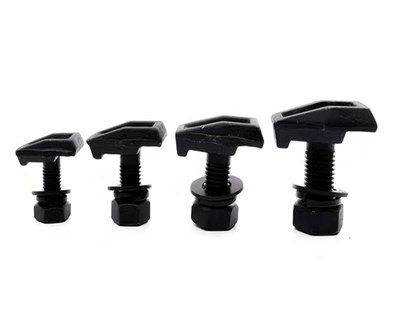

You are here: Home » Products » Shaft system » Rail Clip » ESNB01-08 T TYPE RAIL CLIP
| Model | Applicable guide rail | Specifications(mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

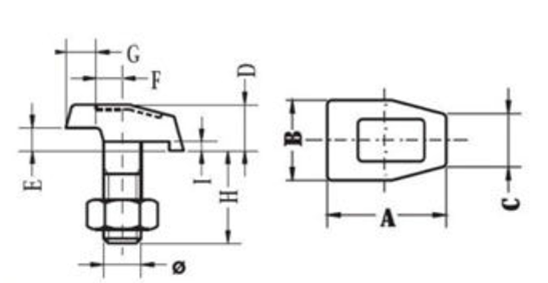

| Bolt | A | B | C | D | E | F | G | H | I | J | ||
| T1 | T45/A, T50/A | M10 | 32 | 22 | 15 | 19 | 25 | 3.5 | 12 | 2 | 5 | 11 |
| T2 | T70-1/B, T75-3/B, T78/B | M12 | 39 | 26 | 19 | 22 | 30 | 4.3 | 15 | 3 | 6.5 | 13 |
| T3 | T82/B, T89/B, T90/B | M14 | 45 | 29 | 21 | 28 | 38 | 5.5 | 18.5 | 4 | 8 | 13 |
| T4 | T114/B, T127-1/B, T127-2/B | M16 | 50 | 34 | 22 | 34 | 44 | 6.5 | 20.5 | 4 | 8.5 | 15 |
| T5 | T140-1/B, T140-2/B | M18 | 55 | 37 | 23 | 35 | 46 | 9 | 23 | 4 | 11 | 17 |
