You are here: Home » Products » Shaft system » Rail Clip » ESNB01-07 CASTING RAIL CLIP

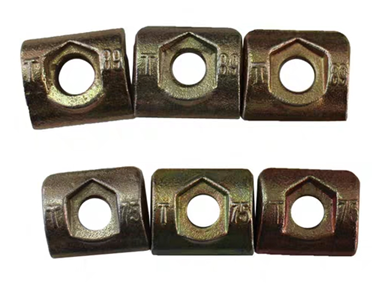

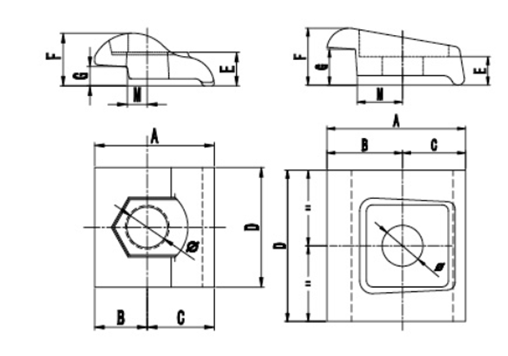

| Model | Applicable guide rail | Specifications(mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bolt | A | B | C | D | E | F | G | M | Φ | |||
| 01 | T75-3/B | M8 | 30 | 15 | 15 | 30 | 10.5 | 15 | 4.5 | 3 | 9 | M8 |
| 02 | T89/B | M12 | 32 | 16 | 16 | 38 | 11 | 16 | 5 | 6 | 13 | M12 |
| 03 | T90/B | M12 | 32 | 16 | 16 | 38 | 11 | 16 | 5 | 6 | 13 | M12 |
| 04 | T114/B | M16 | 50 | 22 | 28 | 50 | 14 | 22 | 5 | 7.5 | 17 | M16 |
| 05 | T127-1/B | M16 | 50 | 22 | 28 | 50 | 14 | 22 | 5 | 7.5 | 17 | M16 |
| 06 | T127-2/B | M16 | 50 | 22 | 28 | 50 | 17 | 25 | 8 | 8 | 17 | M16 |
| 07 | T140-1/B | M16 | 50 | 22 | 28 | 50 | 17 | 25 | 8 | 8 | 17 | M16 |
| 08 | T140-2/B | M18 | 70 | 38 | 32 | 65 | 16 | 25.5 | 12.5 | 24 | 20.5 | M18 |
| 09 | T140-3/B | M18 | 70 | 38 | 32 | 76 | 19 | 28.5 | 19 | 24 | 20.5 | M18 |
