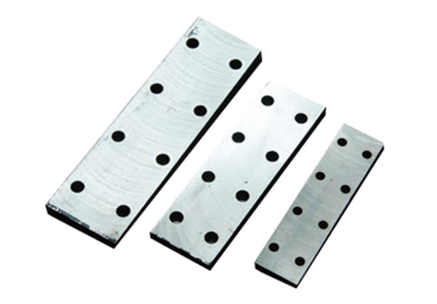

You are here: Home » Products » Shaft system » Machined Guide Rail » ESNB01-02 FISHPLATE

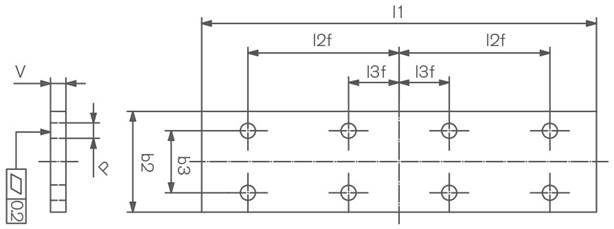

| Suitable Rail Model | d | l1 | l2f | l3f | b2 | b3 | Vmin | Bolt |
|---|---|---|---|---|---|---|---|---|
| T70-1/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 |
| T75-3/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 |
| T78/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 |
| T82/B | 13 | 216 | 80 | 26 | 80 | 50.8 | 10 | M12x35 |
| T89/B | 13 | 305 | 114.3 | 38.1 | 90 | 57.2 | 13 | M12x35 |
| T90/B | 13 | 305 | 114.3 | 38.1 | 90 | 57.2 | 13 | M12x35 |
| T114/B | 17 | 305 | 114.3 | 38.1 | 120 | 70 | 17 | M16x50 |
| T127-1/B | 17 | 305 | 114.3 | 38.1 | 130 | 79.4 | 17 | M16x50 |
| T127-2/B | 17 | 305 | 114.3 | 38.1 | 130 | 79.4 | 17 | M16x50 |
| T140-1/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 28 | M20x65 |
| T140-2/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 28 | M20x65 |
| T140-3/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 38 | M20x80 |
