Bidirectional Speed Governor

NO.	Model	Sheave diameter(mm)	Rated Speed(m/s)	Rope Diameter(mm)	Tension(N)	Control position	Type	Application

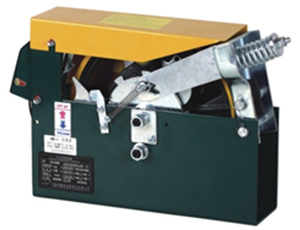

1	ESNF02-240B	Φ240	≤2.5	Φ6/Φ8	≥500	Cabin side counterweight side	Double direction	MR

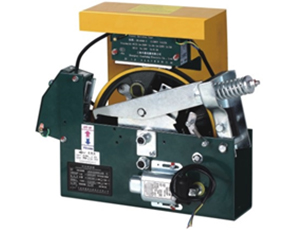

2	ESNF02-240E	Φ240	≤0.63	Φ6/Φ8	≥500	Cabin side counterweight side	Double direction	MRL

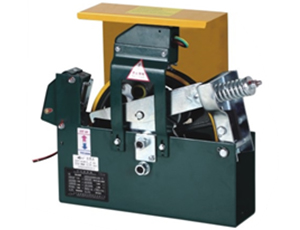

3	ESNF02-20F	Φ200	≤2.5	Φ6	≥500	Cabin side counterweight side	Double direction	MR

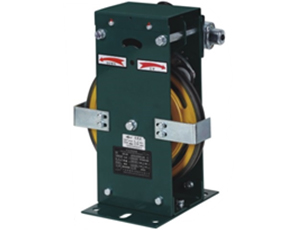

4	ESNF02-187	Φ200	≤1.0	Φ6	≥500	Cabin side counterweight side	Double direction	MRL
		Φ240	≤1.75	Φ6/Φ8
		Φ300	2.0	Φ8

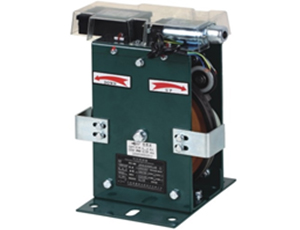

5	ESNF02-186	Φ200	≤0.63	Φ8	≥500	Cabin side counterweight side	Double direction	MRL

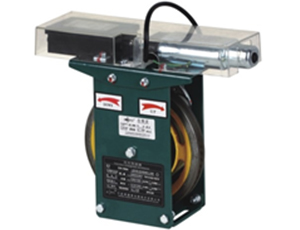

6	ESNF02-186A	Φ150	≤0.4	Φ6	≥500	Cabin side counterweight side	Double direction	MRL
