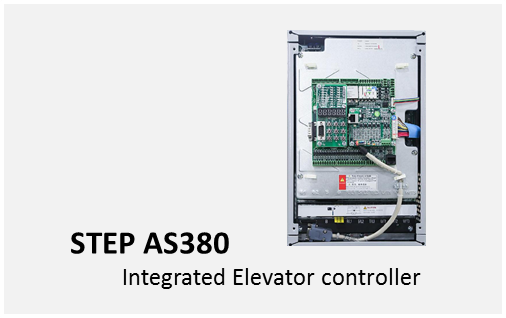

ESNG02 Serial Control system- AS380

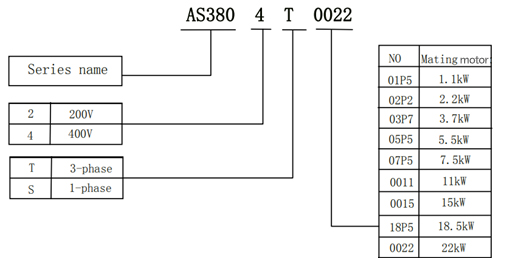

Application	Model AS380	Rated capacity(kVA)	Rated output current(A)	Rated power of motor(kW)	Product dimension(mm)			Gross weight(kg)
Application	Model AS380	Rated capacity(kVA)	Rated output current(A)	Rated power of motor(kW)	Height	Width	Depth	Gross weight(kg)
200V-level	2S01P1	2.3	6.0	1.1	300	160	166	4.5
	2S02P2	4.6	12	2.2
	2S03P7	6.9	18	3.7
	2S05P5	9.5	25	5.5	379	222	185	8.2
	2S07P5	12.6	33	7.5
	2S00P11	17.9	47	11
	2S00P15	23	60	15	465	254	261	10.3
	2S18P5	29	75	18.5
	2S00P22	80	80	22
400V-level	4T02P2	4.7	6.2	2.2	300	160	166	4.5
	4T03P7	6.9	9	3.7
	4T05P5	8.5	13	5.5
	4T07P5	14	18	7.5	357	379	222	8.2
	4T0011	18	27	11	357	379	222	8.2
	4T0015	24	34	15	414	232	192	10.3
	4T18P5	29	41	18.5
	4T0022	34	48	22
	4T0030	50	65	30	530	330	290	30
	4T0037	61	80	37	530	330	290	30
	4T0045	74	97	45	610	330	310	42
	4T0055	98	128	55	610	330	310	42
	4T0075	130	165	75	750	430	351	79.5
