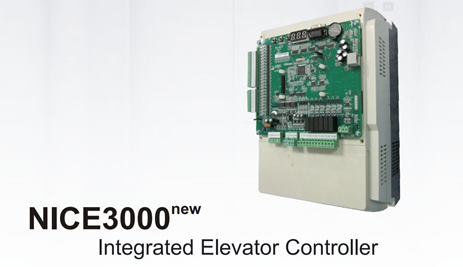

ESNG01 Serial Control system- NICE3000

Application	Model	Power Capacity(KVA)	Input Current(A)	Output Current(A)	Motor Power(kW)	Product Dimension(mm)			Gross Weight(kg)
Application	Model	Power Capacity(KVA)	Input Current(A)	Output Current(A)	Motor Power(kW)	Height	Width	Depth	Gross Weight(kg)
1P220V, 50/60HZ	NICE-L-C-2002	2.0	9.2	5.2	1.1	347	223	143	5.5
	NICE-L-C-2003	2.9	13.3	7.5	1.5	347	223	143	5.5
	NICE-L-C-4007	3.9	17.9	10.3	2.2	347	223	172.5	7
	NICE-L-C-4022	5.9	25.3	15.5	3.7
	NICE-L-C-4015	7.3	31.3	19.0	4.0
	NICE-L-C-4018	8.6	34.6	22.5	5.5	554.5	259.6	207.7	14.5
	NICE-L-C-4022	10.6	42.6	27.7	11.0
	NICE-L-C-4030	13.1	52.6	34.6	15.0
3P220V, 50/60HZ	NICE-L-C-2002	4.0	11.0	9.6	2.2	347	223	143	5.5
	NICE-L-C-2003	5.9	17.0	14.0	3.7	347	223	143	5.5
	NICE-L-C-4007	7.0	20.5	18.0	4.0	347	223	172.5	7
	NICE-L-C-4022	10.0	29.0	27.0	5.5
	NICE-L-C-4015	12.6	36.0	33.0	7.5
	NICE-L-C-4018	15.0	41.0	39.0	11.0	554.5	289.6	207.7	14.5
	NICE-L-C-4022	18.3	49.0	48.0	15.0
	NICE-L-C-4030	23.0	62.0	60.0	18.5
3P380V, 50/60HZ	NICE-L-C-4002	4.0	6.5	5.1	2.2	347	223	143	5.5
	NICE-L-C-4003	5.9	10.5	9.0	3.7
	NICE-L-C-4005	8.9	14.8	13.0	5.5
	NICE-L-C-4007	11.0	20.5	18.0	7.5	347	223	173.5	7
	NICE-L-C-4011	17.0	29.0	27.0	11.0
	NICE-L-C-4015	21.0	36.0	33.0	15.0
	NICE-L-C-4018	24.0	41.0	39.0	18.5	554.5	289.6	223	14.5
	NICE-L-C-4022	30.0	49.5	48.0	22.0
	NICE-L-C-4030	40.0	62.0	60.0	30.0
	NICE-L-C-4037	57.0	77.0	75.0	37.0	600	385	268.42	32
	NICE-L-C-4045	69.0	93.0	91.0	45.0	600	385	268.42	32
