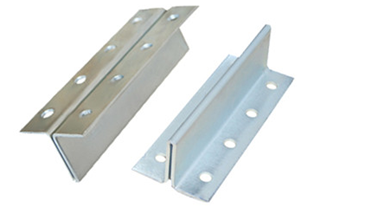

You are here: Home » Products » Shaft system » Hollow Guide rail » ESNB01-06 FISHPLATE

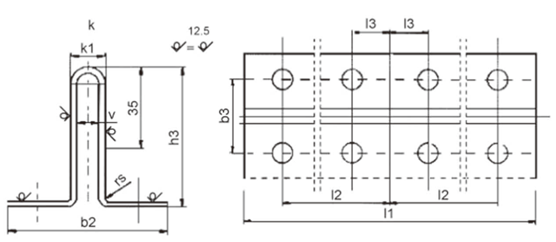

| Type | b2 | h3 | h | u | b3 | L1 | L2 | L3 | Bolt | Washer |
|---|---|---|---|---|---|---|---|---|---|---|
| Tolerances | - | ±1 | +0.2 | - | ±0.5 | ±1.5 | ±0.5 | ±0.3 | - | - |
| TK3 | 72 | 40 | 6 | 3 | 43 | 220 | 90 | 30 | M8x25 | A8 |
| TK5 | 88 | 59 | 10 | 4.5 | 50 | 400 | 180 | 20 | M12x30 | A12 |
| TK3A | 78 | 50 | 12 | 3 | 45 | 200 | 75 | 25 | M10x30 | A10 |
| TK5A | 78 | 50 | 10 | 4 | 45 | 200 | 75 | 25 | M10x30 | A10 |
