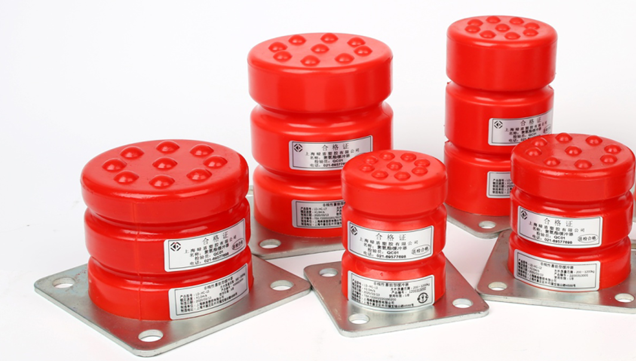

Elevator Rubber Buffer

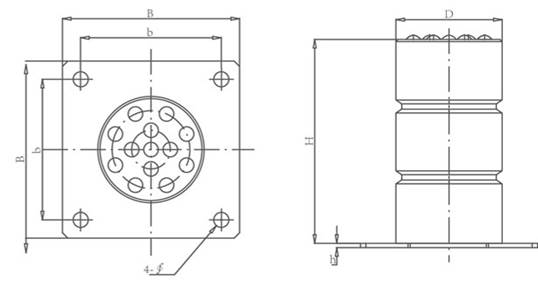

Model	Maximum Compression stroke(mm)	Specification(ΦD×H)	Load Capacity P+Q(kg)	Mounting Dimensions				Naminal Velocity
Model	Maximum Compression stroke(mm)	Specification(ΦD×H)	Load Capacity P+Q(kg)	B	b	h	∮	≤1.0m/s
ESNF04-01	70	Φ65×80	200~1200	95	65	4	12	≤1.0m/s
ESNF04-02	70	Φ80×80	200~1200	108	80	4	12	≤1.0m/s
ESNF04-03	84	Φ80×100	200~2000	108	80	4	12	≤1.0m/s
ESNF04-04	121	Φ80×128	200~2000	108	80	4	12	≤1.0m/s
ESNF04-05	72	Φ100×80	500~2000	128	96	4	14	≤1.0m/s
ESNF04-06	88	Φ100×100	500~2200	128	96	4	14	≤1.0m/s
ESNF04-07	108	Φ100×120	500~2500	128	96	4	14	≤1.0m/s
ESNF04-08	144	Φ100×160	500~3000	128	96	4	14	≤1.0m/s
ESNF04-09	177	Φ100×200	500~2600	128	96	4	14	≤1.0m/s
ESNF04-10	90	Φ120×100	500~3000	160	126	4	14	≤1.0m/s
ESNF04-11	178	Φ120×192	1000~3500	160	126	4	14	≤1.0m/s
ESNF04-12	127	Φ130×150	800~4800	160	126	4	14	≤1.0m/s
ESNF04-13	184	Φ130×200	1000~4200	160	126	4	14	≤1.0m/s
ESNF04-14	108	Φ140×120	500~3000	160	126	4	14	≤1.0m/s
ESNF04-15	162	Φ150×180	1800~400	200	156	4	14	≤1.0m/s
ESNF04-16	199	Φ150×240	1000~4500	200	156	4	14	≤1.0m/s
ESNF04-17	185	Φ160×200	1800~5800	200	156	4	14	≤1.0m/s
ESNF04-18	144	Φ200×160	1800~6000	246	196	4	16	≤1.0m/s
ESNF04-19	182	Φ200×200	1800~7500	246	196	4	16	≤1.0m/s
ESNF04-20	198	Φ200×220	1800~7800	246	196	4	16	≤1.0m/s
ESNF04-21	225	Φ200×250	1800~8000	246	156	4	14	≤1.0m/s
ESNF04-22	180	Φ250×200	2000~8000	320	250	4	18	≤1.0m/s
ESNF04-23	220	Φ250×250	2000~8200	320	250	4	18	≤1.0m/s
ESNF04-24	299	Φ250×320	2000~8500	320	250	6	18	≤1.0m/s
ESNF04-25	230	Φ320×250	2000~9000	400	315	6	22	≤1.0m/s
