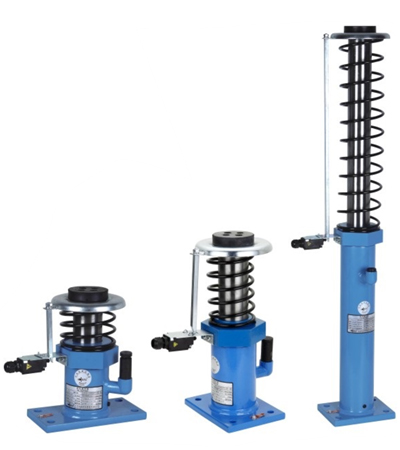

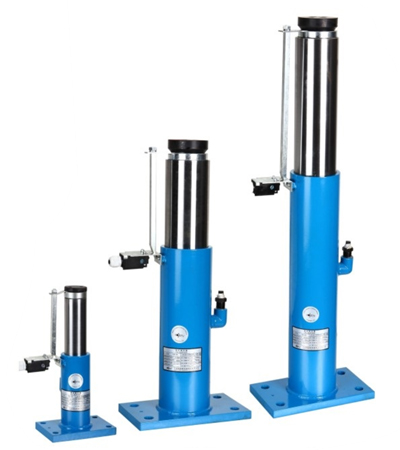

Elevator Oil Buffer

Type	Model	Rated Speed(m/s)	P+Q(Kg)	Plunger Stroke(mm)	Static Height(mm)	Installation size(mm)	Oil Mass(L)
A	ESNF05-10	≤1.0	300-2500	100	390	90*150	0.5
A	ESNF05-16	≤1.6	700-5300	175	625	100*210	1.7
A	ESNF05-20	≤2.0	1000-5300	290	915	100*210	2.6
B	ESNF05-65	≤0.63	500-4600	65	350	100*150	0.45
B	ESNF05-70	≤1.0	300-2500	70	305	80*210	0.5
B	ESNF05-80	≤1.0	600-3000	80	315	90*150	0.4
B	ESNF05-175	≤1.6	600-3000	175	510	90*150	0.6
B	ESNF05-210	≤1.75	700-3600	210	600	90*150	0.8
B	ESNF05-220	≤1.75	600-2500	220	780	80*210	1.3
B	ESNF05-275	≤2.0	800-3800	275	790	80*210	1.5
B	ESNF05-425	≤2.5	820-3600	425	1130	100*150	2.5
